รายละเอียดสินค้า

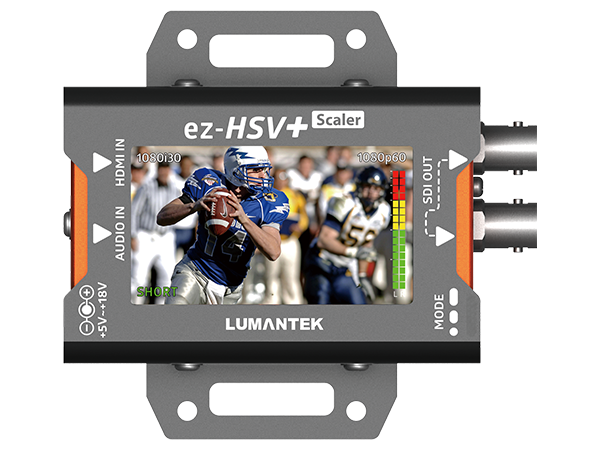

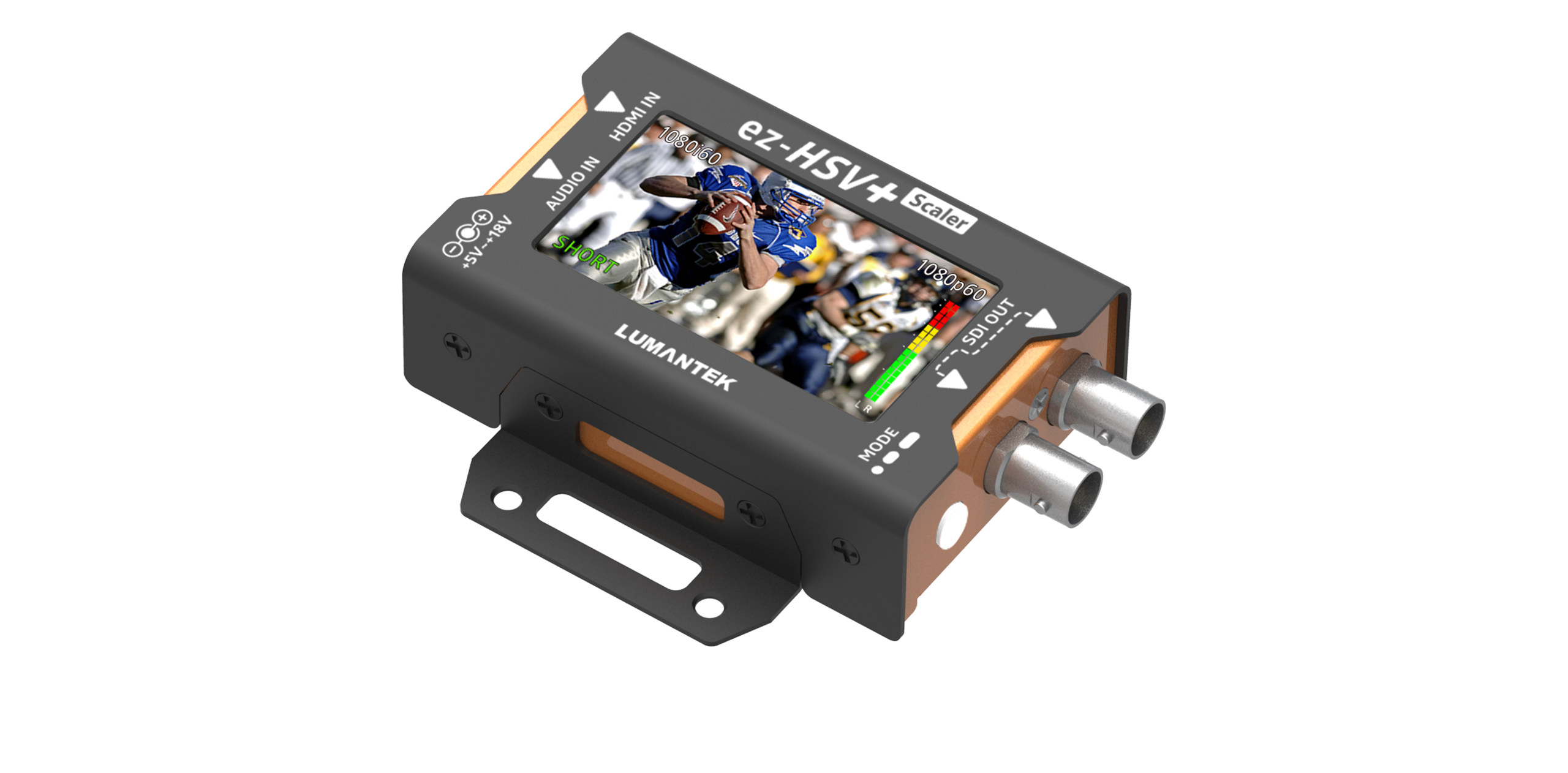

HDMI to SDI Converter with Display

Now you can monitor HDMI video with ez-HSV+. Features you can check are audio bar, incoming resolution and scaled out resolution. The ez-HSV+ comes with the capability to embed external audio as well to give you a more convenient way to plan your production scheme.

ez-HSV+ HDMI to SDI Converter plus Scaler | Shop.carettafps.com

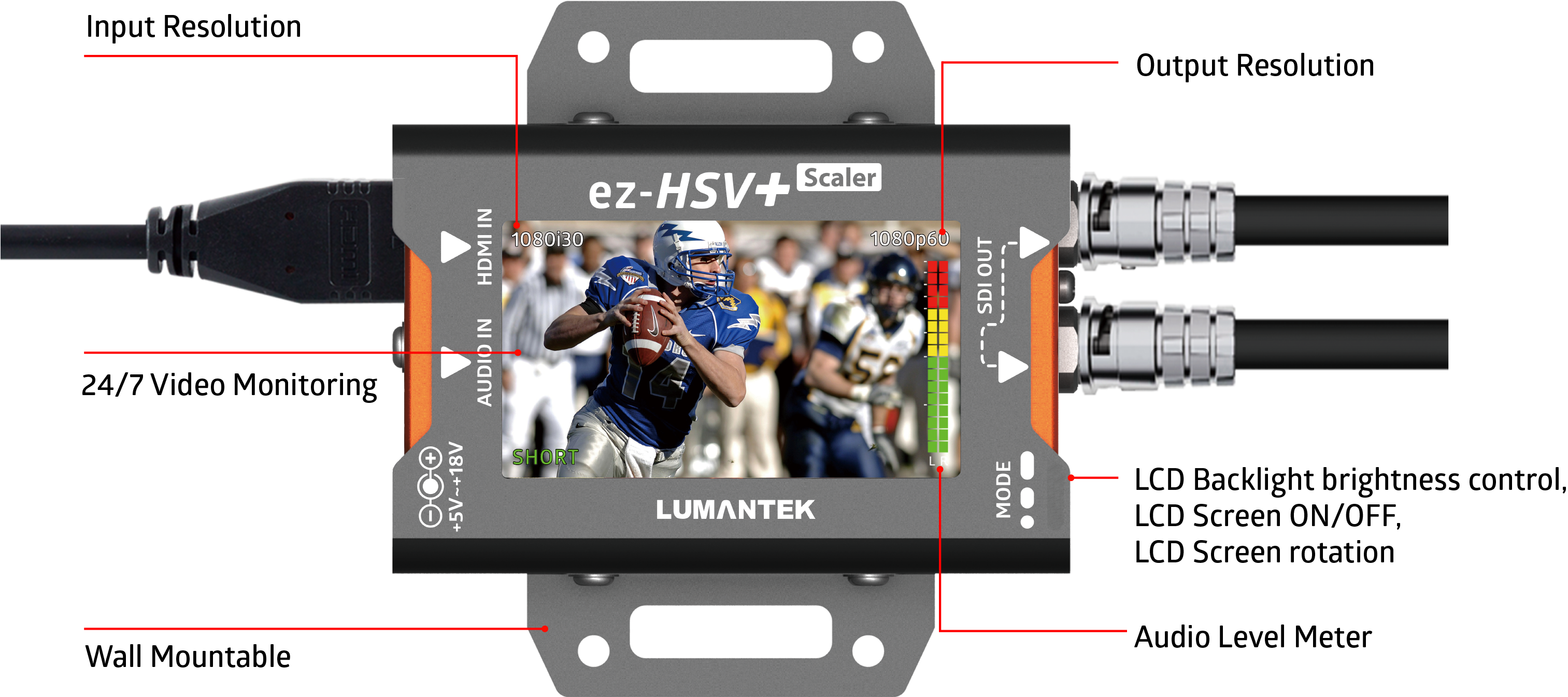

24/7 Video Monitoring

Through the 2.7 inch TFT LCD screen, you can monitor the incoming video and in/output source resolution.

Audio Level Meter

You can also check the sound through the audio level meter on the screen. No more worries with audio!
Lumantek ez-HSV+ converter with display | Zimele Broadcasting Services
BROADCASTING PRODUCTS CATALOG

Low Power Consumption

The Maximum power consumption of ez-HSV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility in connecting power. You can also use a power bank to use this coverter.
Input Ports

Video

1 x HDMI


Specification

Data Input
 Analog Audio Input  Stereo Jack x 1
 HDMI Video Input  SD/ HD/ 3G (HDMI Type A) x 1

 Video Formats

  - 720x480i@59.94/60
  - 720x576i@50
  - 1280x720p@50/59.94/60
  - 1920x1080i@50/59.94/60
  - 1920x1080p@23.94/24/25/29.97/30
  - 1920x1080p@50/59.94/60
  Data Output
 SDI Video Output  SD/HD/3G-SDI (BNC 75Ω) x1

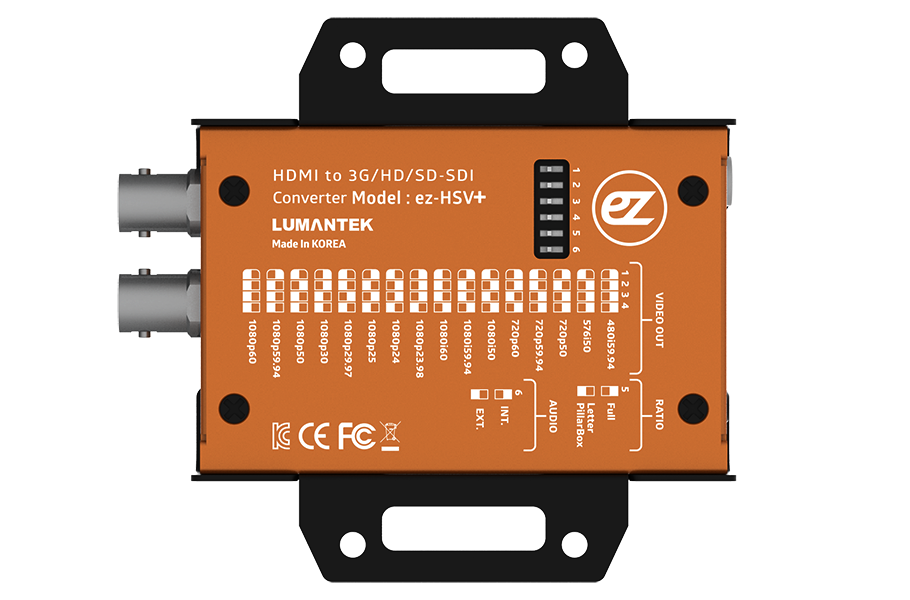

 Video Formats   - 720x480i@59.94 (DIP SW : 1111)
  - 720x576i@50 (DIP SW : 0111)
  - 1280x720p@50 (DIP SW : 1011)
  - 1280x720p@59.94 (DIP SW : 0011)
  - 1280x720p@60 (DIP SW : 1101)
  - 1920x1080i@50 (DIP SW : 0101)
  - 1920x1080i@59.94 (DIP SW : 1001)
  - 1920x1080i@60 (DIP SW : 0001)
  - 1920x1080p@23.98 (DIP SW : 1110)
  - 1920x1080p@24 (DIP SW : 0110)
  - 1920x1080p@25 (DIP SW : 1010)
  - 1920x1080p@29.97 (DIP SW : 0010)
  - 1920x1080p@30 (DIP SW : 1100)
  - 1920x1080p@50 (DIP SW : 0100)
  - 1920x1080p@59.94 (DIP SW : 1000)
  - 1920x1080p@60 (DIP SW : 0000)

 Connections
 Power  DC Power Input (OD: 5.5mm, ID:2.1mm) x1
 DIP Switch  (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio (INT. or EXT.)
 MODE  (Push Switch) x 1 LCD ON/OFF, Menu Selection
 Display
 2.7 inch TFT LCD

Input Video Display, In/Output Video Resolution Display, Input Audio Level Meter Display
 Electrical
 Power Input  DC + 5V to + 18V
 Power Consumption  4W (max.)
 Operation Temperature

 0~45℃
 Physical
 Dimension  86.3x57.2x26.6 mm (include connector)
 Weight  0.3 kg (0.66 lbs)



Output ports

Video

2 x SDI OUT
