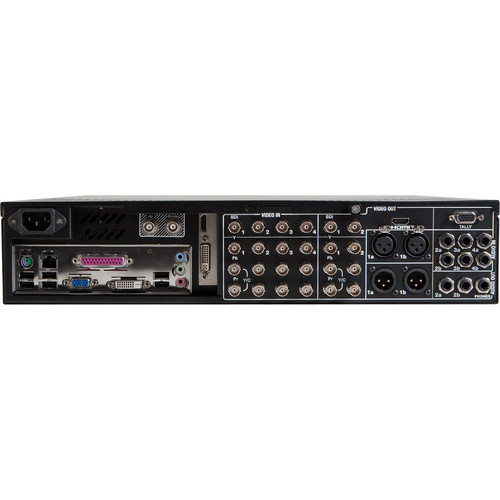

Vizrt : 3Play 425 Full Unit Replay System with Controller (NewTek)

Vizrt : 3Play 425 Full Unit Replay System with Controller (NewTek)
Vizrt : 3Play 425 Full Unit Replay System with Controller (NewTek)Vizrt : 3Play 425 Full Unit Replay System with Controller (NewTek)
รหัสสินค้า SKU-00897
หมวดหมู่ Live Production Systems
ราคา 0.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 9 พ.ย. 2563
อัพเดทล่าสุด 6 ส.ค. 2567
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : NewTek 3Play 425 Full Unit Replay System with Controller, NewTek 3Play 425

รายละเอียดสินค้า

NewTek RPXD425 Specs

Video Input 4 simultaneous inputs
Any combination of:
HD-SDI, HD component, SD-SDI, SD component, composite, or Y/C (BNC)
Video Output 2 fully independent, simultaneous play-out channels
HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C (BNC)
HDMI output
Dedicated HDMI multi-view output
Network output for over-the-network input to TriCaster
Mode A; B; A+B
Video Formats NTSC Model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
Supports 16:9 and 4:3 aspect ratios
Channels Recording: 4
Recording Capacity More than 30 hours of combined 1080i storage across internal drive and removable drive (15+ hours per drive)
MPEG-2 all I-frame
Genlock Locks to HD or SD analog signals
Supports either tri-level or bi-level sync sources
Multi-viewer Supported with 2nd display, including HUD
Audio Inputs 4 x SDI embedded
3 x 2 balanced 1/4" (Mic/Line)
1 x 2 balanced XLR (Mic/Line)
Audio Outputs 2 x SDI embedded
1 x 2 balanced XLR
1 x 2 balanced 1/4"
Audio Processing Audio is uncompressed and sampled at 96 kHz, 32-bit
Time Code LTC
Standards For Audio/Video:
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
Controller Dedicated controller with T-bar, jog wheel, speed presets, and clip transport
Dimensions 19.0 x 3.5 x 22.5" (48.3 x 8.9 x 57.2 cm)
Weight 28.0 lb (12.7 kg)
Packaging Info
Package Weight 57 lb
Box Dimensions (LxWxH) 26 x 25 x 16.5"
