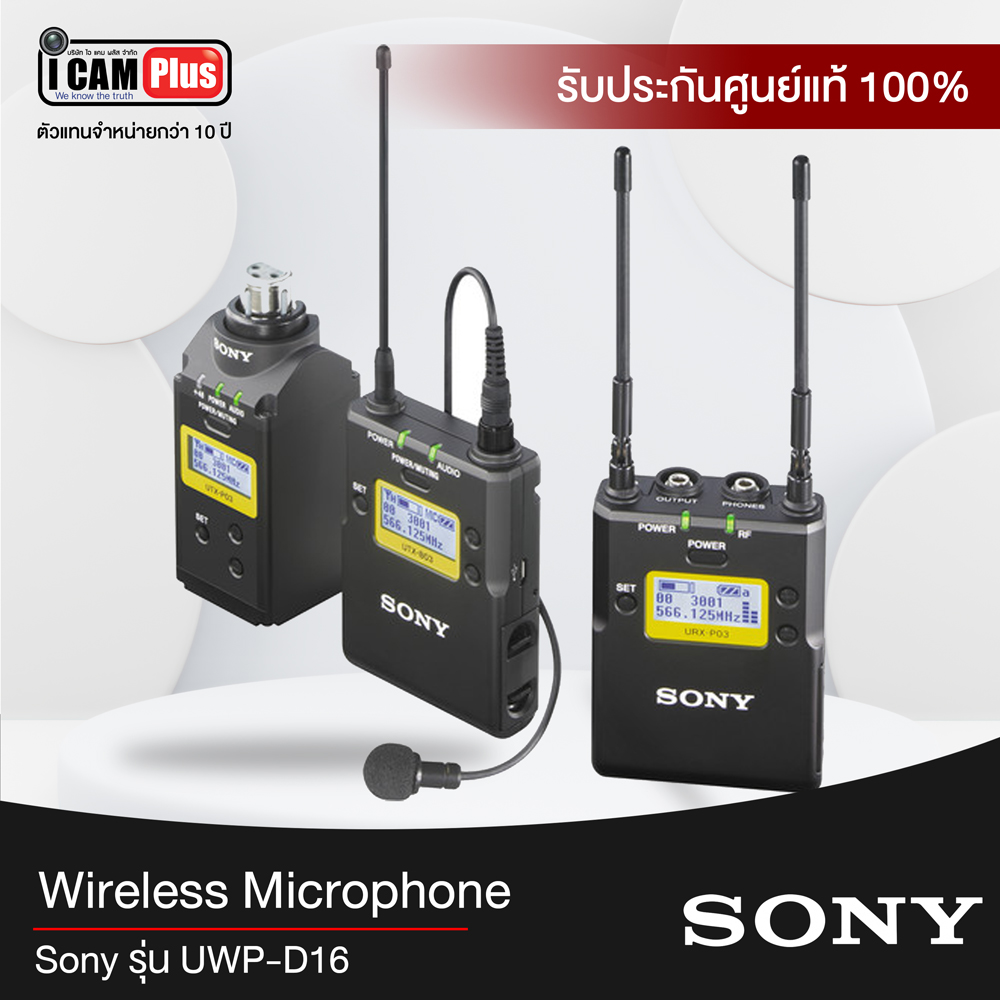

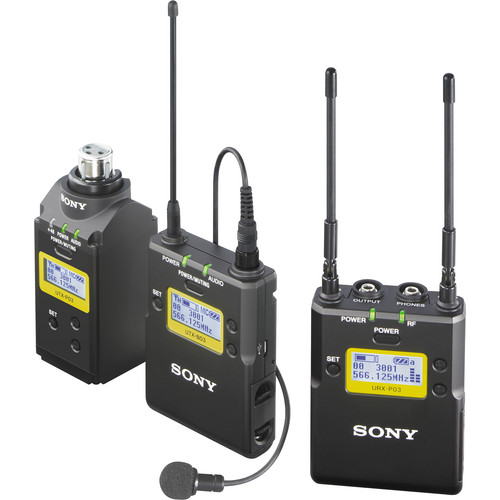

Name: ไมโครโฟนไร้สาย Sony รุ่น UWP-D16 แบบเหน็บเสื้อและตัวรับสัญญาณ
SKU: SKU-00090
Price: 24500 THB
Availability: InStock

Microphone
Directivity	Omnidirectional
Weight	Not specified by the manufacturer

System
Type of System	Camera mountable UHF synthesized wireless plug-in system
RF Carrier Frequency Range	566 to 608 and 614 to 638 MHz
RF Bandwidth	66 MHz
Approx. Working Range	Not specified by manufacturer

Receiver
Type of Receiver	Camera mountable, space diversity, crystal-controlled PLL synthesizer
Reception Type	True diversity
Antenna Type	1/4 wave length wire
Frequency Response	23 to 18,000 Hz (typical)
Signal to Noise Ratio	96 dB (max deviation, A-weighted)
Distortion	0.9% or less (-60 dBV, 1 kHz input)
Audio Delay	Approximately 0.35 msec
Type of Outputs	3.5 mm (1/8") mini-jack, unbalanced
Analog Output Levels	-60 dBV (at ± 5 kHz deviation)
Adjustment Range	-12 dB to +12 dB (in 3 dB steps)
Headphone Monitoring	3.5 mm (1/8") stereo mini-jack, unbalanced with variable level
Headphone Output Level	5 mW (at 16 Ω load)
Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
Display	LCD
Power Requirements	3.0 VDC (with two AA-size alkaline (LR6) batteries) 5.0 VDC (via USB micro-B)
Battery Type/Approx. Life	Approximately 6 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C)
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 131°F (-20 to +55°C)
Mounting Options	Camera / Belt / Mic Stand Mountable
Dimensions	2.50 x 3.25 x 0.94" (63.0 x 82.0 x 23.8 mm)
Weight	6.2 oz (176 g) including batteries

Transmitter
Type of Transmitter	Crystal-controlled PLL synthesizer plug-on transmitter
Antenna Type	Integral
Emission	F3E
RF Power	30 mW / 5 mW
Type of Microphone	Not Applicable
Type of Input Connector	Mic/Line switchable - 3-pin XLR female
Phantom Power	+48 V
Reference Input Level	Mic: -60 dBV (at 0 dB attenuator level) Line: +4 dBu
Adjustment Range	Mic input: 0 to 21 dB (in 3 dB steps)
Frequency Response	23 to 18,000 Hz (typical)
Signal to Noise Ratio	96 dB (max deviation, A-weighted)
Audio Delay	Approximately 0.35 msec
Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
Interchangeable Mic Heads	Standard XLR Type Microphones
Display	LCD
Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
Battery Type/Approx. Life	Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 131°F (-20 to 55°C)
Dimensions (W x H x D)	1.65 x 1.65 x 4.02" (42 x 42 x 102 mm)
Weight	Approximately 6.9 oz (197 g) including batteries

Transmitter
Type of Transmitter	Crystal-Controlled UHF PLL-Synthesized bodypack transmitter
Antenna	1/4 wave length wire
Emission	F3E
Carrier Frequency Range	566 to 608 and 614 to 638 MHz
RF Power	30 mW / 5 mW
Type of Input Connector	Mic/Line Switchable - 3-pole locking mini microphone connector (3.5 mm)
Interchangeable Mic Heads	Compatible with any microphone that features a mini (3.5mm) connection
Reference Input Level	Mic: -60 dBV (at 0-dB attenuator level) Line: +4 dBu
Adjustment Range	Mic: 0 to 21 dB (in 3 dB steps)
Frequency Response	23 to 18,000 Hz (typical)
Signal to Noise Ratio	96 dB (max deviation, A-weighted)
Audio Delay	Approximately 0.35 msec
Pilot Tone	32 kHz / 32.382 kHz / 32.768 kHz
Display	LCD
Power Requirements	3.0 VDC (with two AA-size alkaline LR6 batteries) 5.0 VDC (via USB micro-B)
Battery Type/Approx. Life	Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 131°F (-20 to 55°C)
Dimensions (W x H x D)	2.48 x 3.23 x 0.79" (63.0 x 82.0 x 20.0 mm)
Weight	5.26 oz (149 g) with batteries
