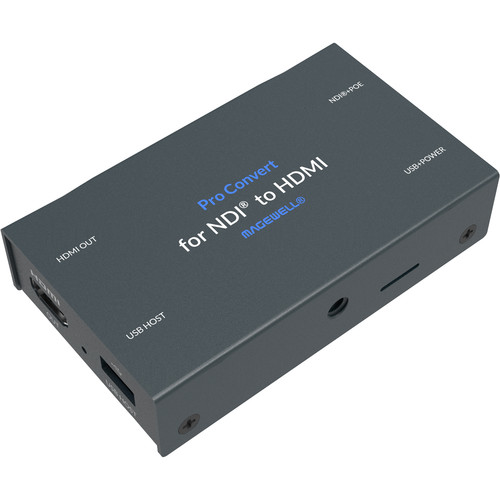

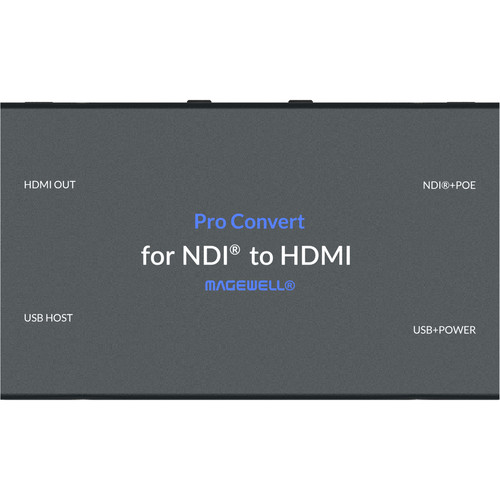

Magewell Pro Convert NDI to HDMI Decoder
รายละเอียดสินค้า
Supported Web Browser (tested)
- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above

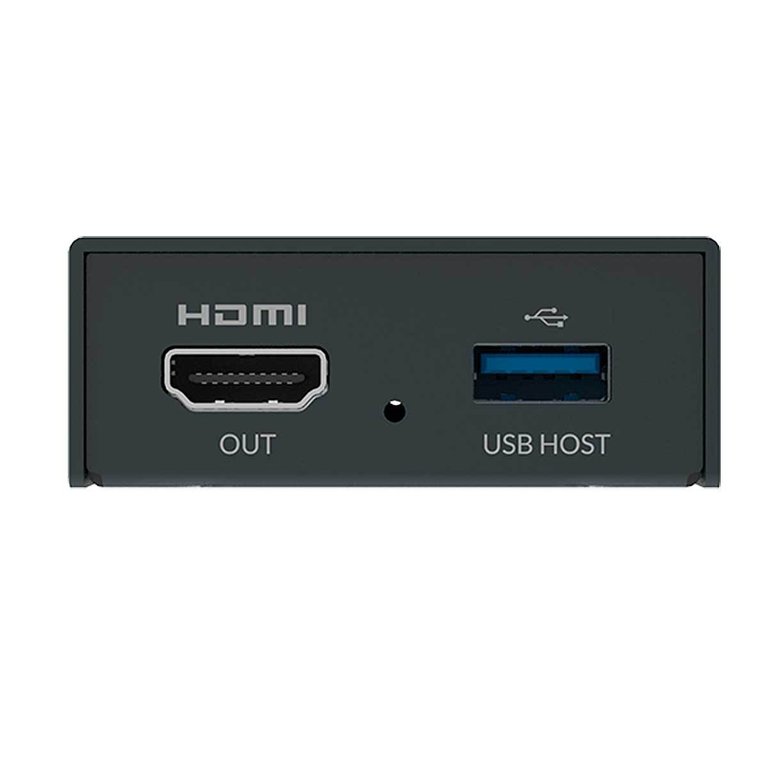

Output Interfaces
- HDMI
- DVI-D 1.0
- HDMI 1.4
- HDMI 2.0
Storage Interface
- SD Card (functions to be developed)
Screw Mounting Hole
- ¼–20 mounting hole

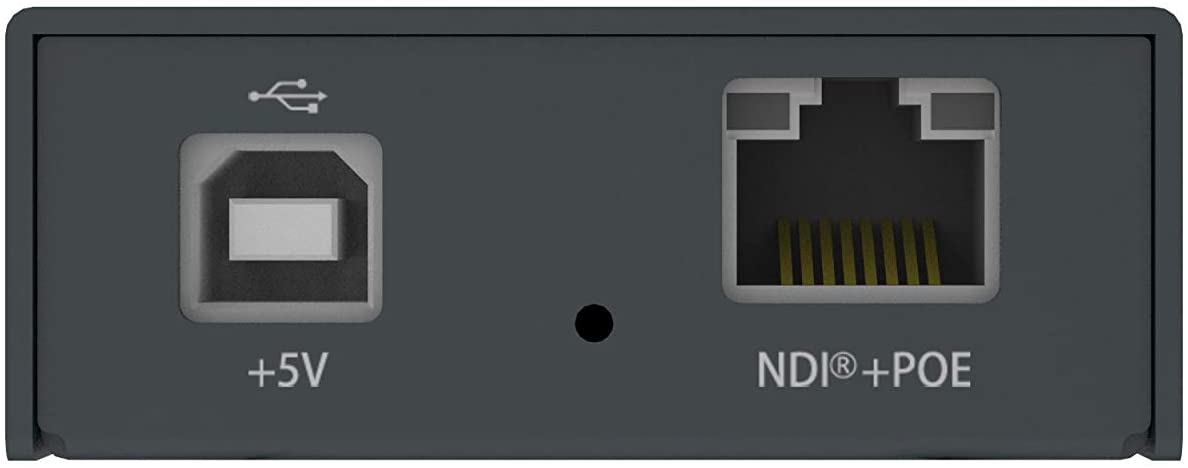

Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE
USB Interface
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
- USB3.0 Type A
- Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
Control Buttons
- MENU: press to display the menu, or cycle through the options
- SELECT: press to display the menu, enter current option, or confirm the selection
HDMI Output Features
- Support for up to 4096x2160 60fps HDMI output
- Support for 96KHz 16bits 8-channel audio streams
- Support for delivering videos at the preferred video format according to the EDID of the connected monitor
Stream Decoding Features
- Support for decoding full NDI® and NDI HX in NDI 4.x
- Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
- Support for decoding videos in H.264 and H.265 format
- Support for decoding AAC/MP3 audios
- Support for up to 150M pixels/s decoding
- When receiving 2K NDI® stream, the device could decode and convert it to 2K 60fps
- When receiving 4K NDI® stream, the device could decode and convert it to 4K 15fps
- Support for modifying configurations using the Web UI or the Options menu
- Setting Video OSD composition, including
- Source name & resolution
- Tally indicators
- Audio meter
- Audio meter scale
- Center cross
- Safe area
- Video scaling, frame rate and aspect ratio conversion
- Video color format conversion
- Auto or manual selection of input color format
- Support YUV BT.601, YUV BT.709 color formats
- Video vertical and mirror flip
- Remote controlling the PTZ device connected to the video source
- Setting audio gain, sample rate and channels
Device Name
- Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
- Support for setting board-index, from 0 to F, through the on-board rotary switch
Firmware Upgrade
- Support for manual update using Web UI
LED Indicator
- Power LED status indicator
- On: power connected
- Off: power unconnected
- Decode LED status indicator
- On: decoding in progress
- Blinks: decoding error
- Off: source unselected
Form Factor
- 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories
- USB 2.0 A to B Cable
- 5V/2.1A power adaptor
- L-bracket
Power Consumption
- 5V max current: ~1.1A
- Max power consumption: ~5W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
